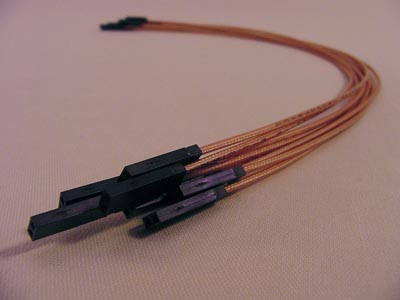

Digital Coax Cables, 1x2 , (qty 5)
Digital Module to DIB Launch DC Insert
Part Number: RIK0148A
These impedance matched Coax Cables are necessary to interface with the DUT to avoid digital interference. DO NOT USE DC JUMPER CABLES.
For use with RIK0147A.
Note: Best performance DIB interface method is via the Insert / High Speed Digital Launch (RIK0127A 20 Pin Digital) and ribbon connected bottom plate TIM Block (RIK0141A 80 Pin TIM Block).
Related Documents:
 | Digital TIM or Fixture Digital Module Best Practices - How to Avoid Failure Interfacing Due To Wiring Ringing Effects |
| Quantity | Connector Type(s) | Genders | Angle(s) | |
|---|---|---|---|---|
| Side A | 5 | Coax (pair) | F | |
| Side B | 5 | Coax (pair) | F |
Max Frequency: 0 GHz
Cable Length: 16 inches
Cable Structure: Flexible (Unlimited Bend, Min Stability)
Fixture Block Type:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MGY3681A | 5 | Coax, Flex, RG178, 2 Pin MTA-2 Pin MTA, 16" | Coax |
