Matrix Fixture, Quad Top Plate, Pedestal Support & Clamp
Cassini Quad Site, Intest Compatible
Part Number: RIK0152B
In Stock: 0
Estimated Restocking Time: Limited Availability: 12+ weeks
Matrix Fixture, Large DIB Fixture Top Plate Assembly, Compatible with Intest Designs
Supports Up to 60 Inserts
10.5x13.5"
Related Documents:
Elastomer Trimming https://roos.com/docs/JCON-9DNSYA

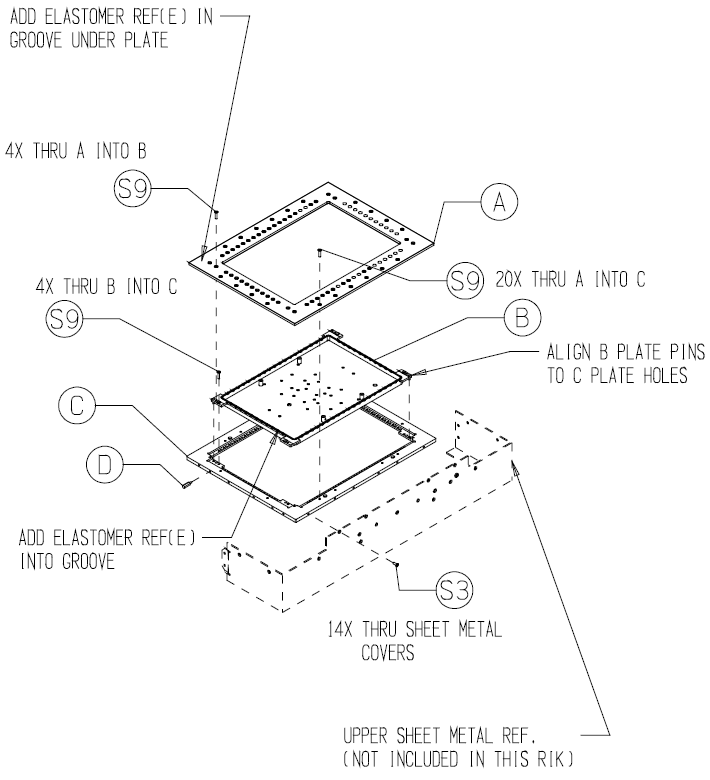

| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | S9 | M6JH3W1A | 30 | SCREW, FLAT PHIL , 4-40 X 3/8", 100° SS | Hrdwr | |
| 2 | E | MA662W1A | 36 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | |
| 3 | D | MGZ88J1A | 1 | Standoff, 4-40 x 3/8, M/F 3/16, Hex, SS | Hrdwr | |
| 4 | S3 | MH3FNL1A | 14 | SCREW, FLAT PHIL, 4-40 X 1/4",100° SS, w/patch | Hrdwr | |
| 5 | - | MMWLSE6A | 1 | ASSY INSTRUCTIONS RIK0152B | Dcmnt | |
| 6 | B | W1MFEYGC | 1 | support insert QUAD 13.5X10.5* | MchFb | |
| 7 | C | W1MFEYHE | 1 | ALPHANUMERIC TOP FIX INSERT QUAD 13.5X10.5 | MchFb | |
| 8 | A | W1MFFAKE | 1 | CLAMP INSERT THIN 13.5X10.5 | MchFb |
