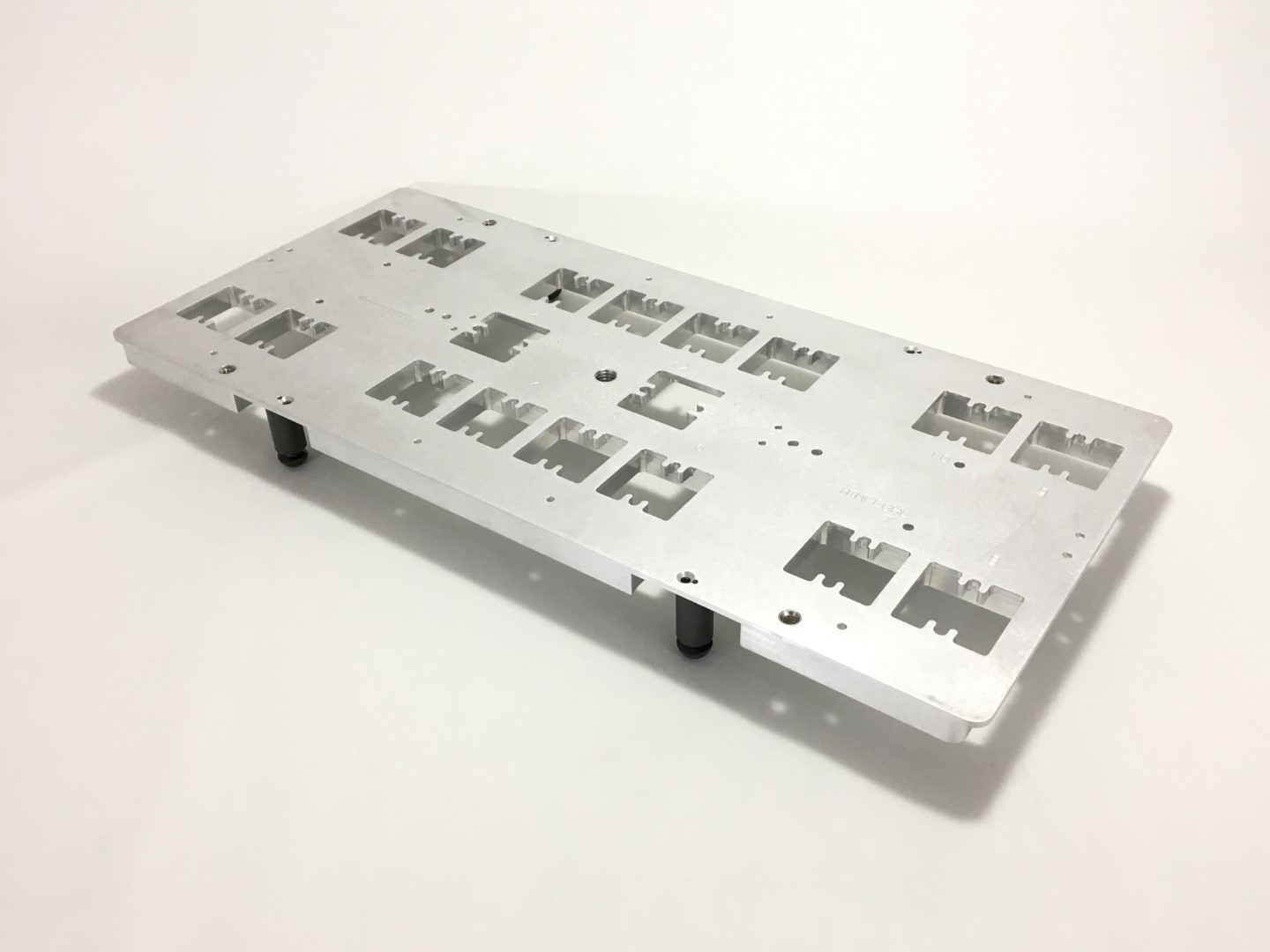

Standard bottom plate assembly used on the Cassini 16 Test Head. This Bottom plate can be used as a Soft-dock solution with TIM blocks to connect Evaluation Boards or it can be used with Sides and a Top Plate, Carrier boards, etc. to form a complete Hard-dock fixture.
Related Documents:
Fixture Assembly Steps - Cassini 16 with InTest Top Plate (RIK0178A, RIK0152B, RIK0164A)
