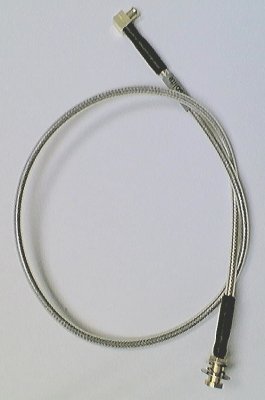

RF Cable, Flex, SSIS(m)-90° MCX(m), 15"
RI7100A Test Head to Fixture Modules or DIB
Part Number: RIK0183A

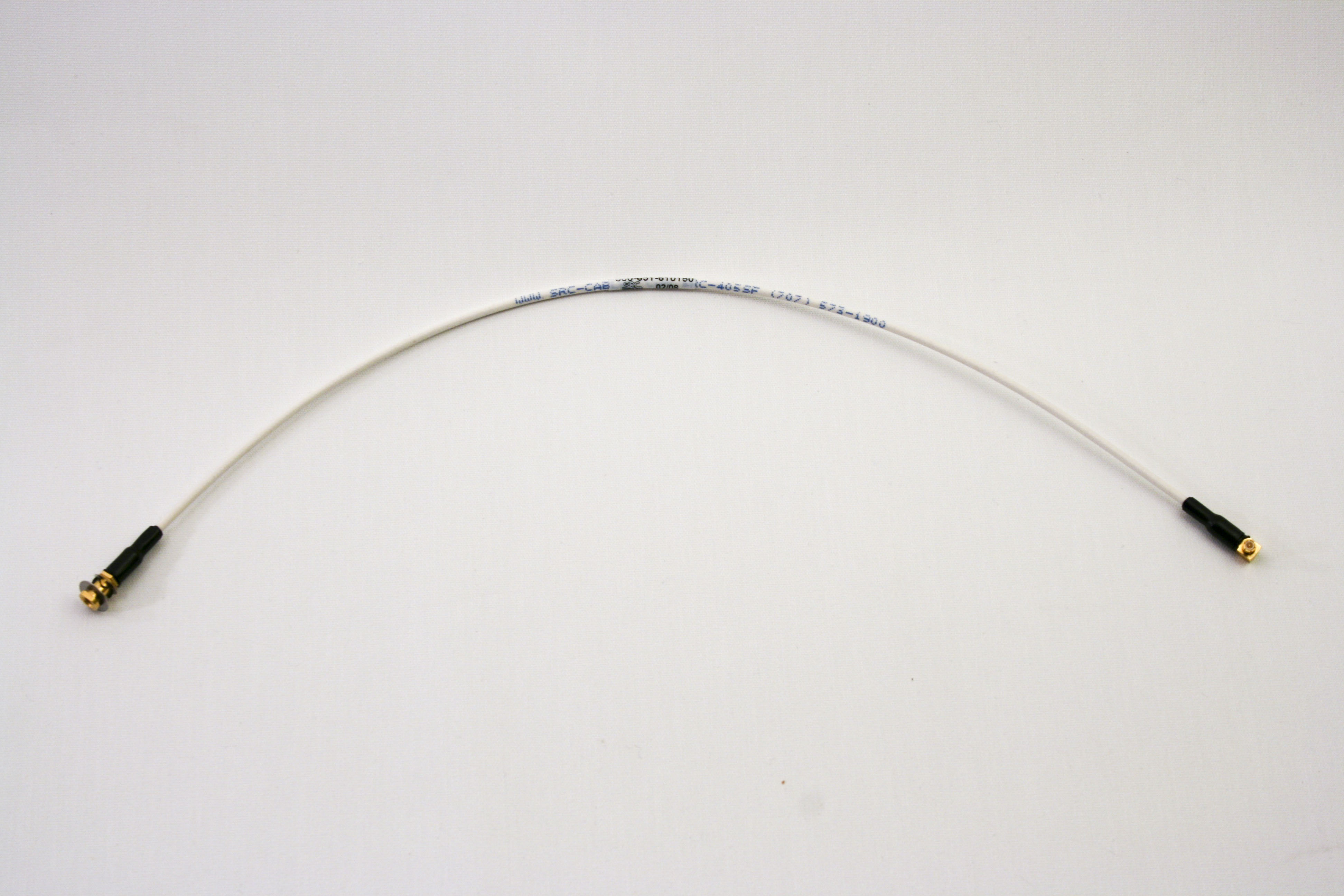

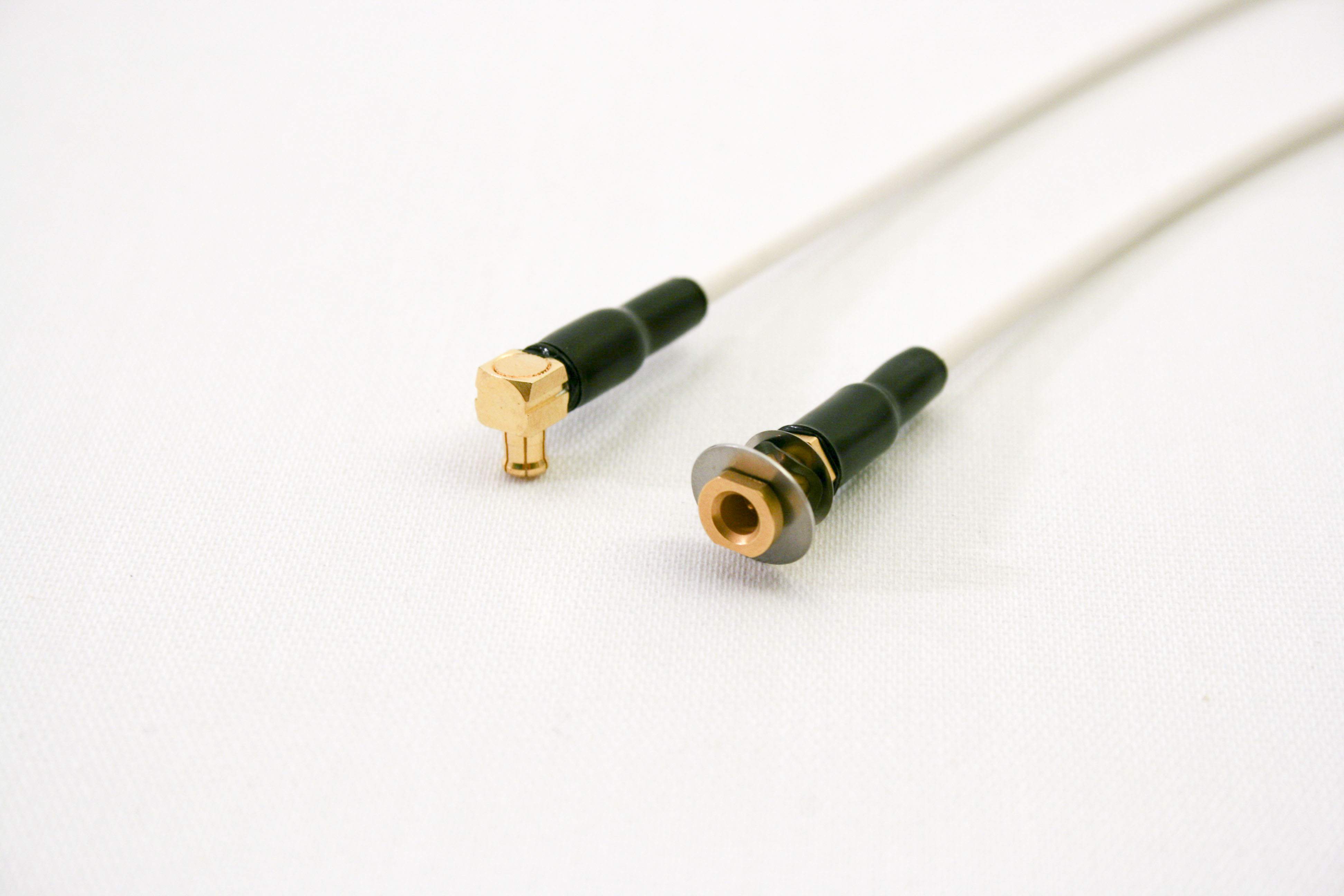

1st Image: White cable (functionally equivalent)

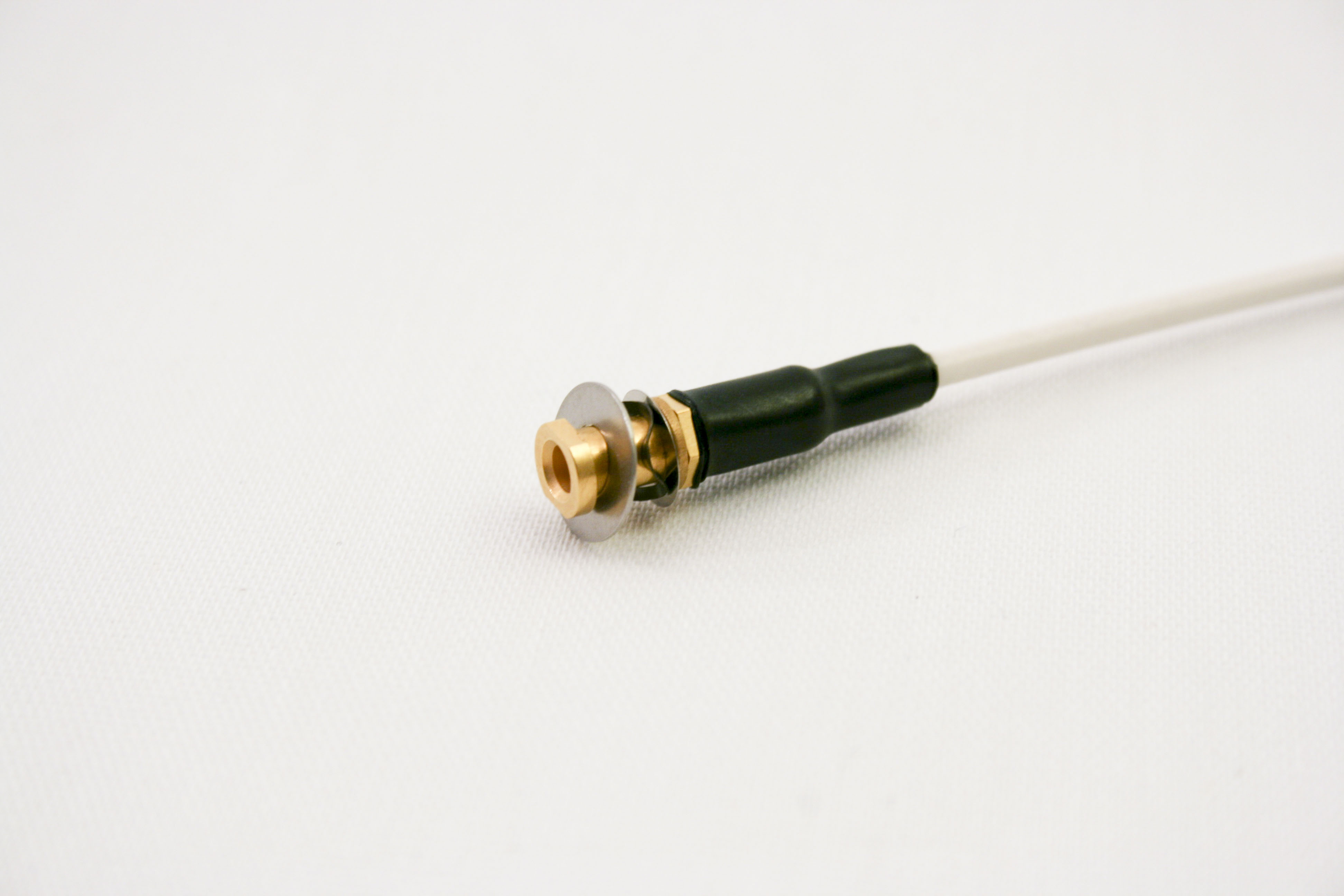

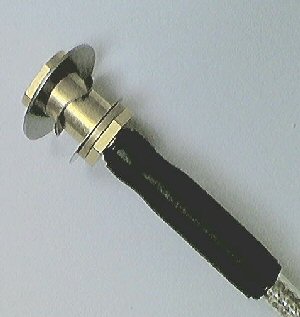

2nd Image: SSIS Connector

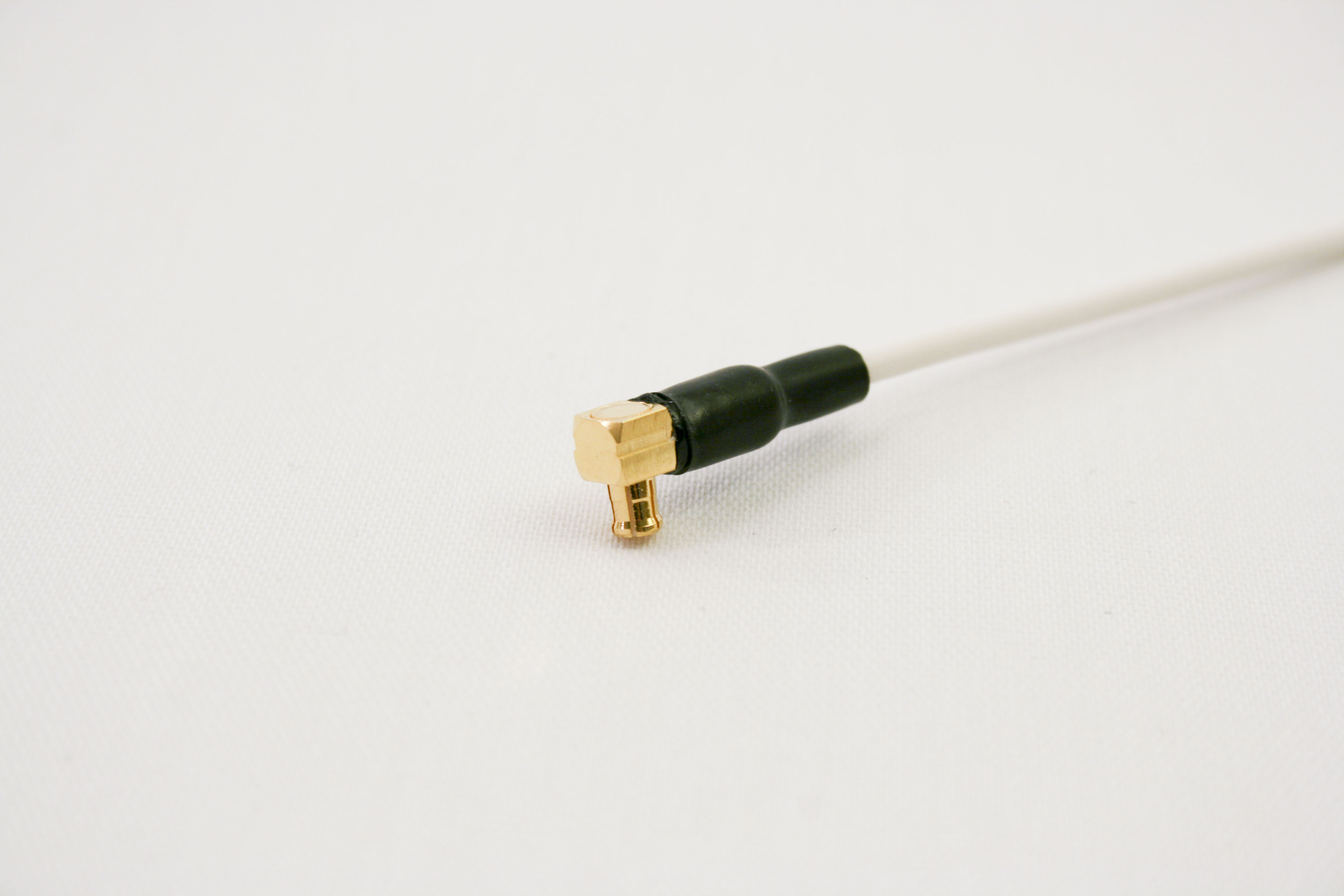

3rd Image: MCXM Connector
SSIS Cables found on RI7100A pogo-ring Testhead.
Related Documents:
| Quantity | Connector Type(s) | Genders | Angle(s) | |
|---|---|---|---|---|
| Side A | 1 | SSIS | M | |
| Side B | 1 | MCX | M | 90° |
Max Frequency: 12 GHz
Cable Length: 15 inches
Cable Structure: Flexible (Unlimited Bend, Min Stability)
Fixture Block Type:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MHZYCC3A | 1 | Coax, SRC-405SF, ssism-mcx 90° 15"* | Coax |
