This item will not be restocked when depleted and should be avoided for new designs.
This product entered limited availablity on 08/18/2015.
View RIKs with Limited Availability for a complete list.
Suggested Replacement: RIK0259A
Expiration Reason: 8 hole
Aditional replacements may be found by searching for RIK0213 (change the REV letter) or QuickLock, DUT Clamp, Seiko/Epson, 8 screw.

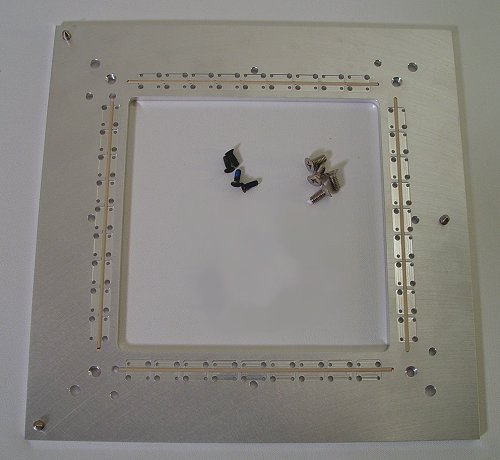

QuickLock, DUT Clamp, Seiko/Epson, 8 screw
Seiko/Epson handlers with QuickLock Top Plate, extra screws
Part Number: RIK0213B
In Stock: 0
Estimated Restocking Time: 12+ weeks (limited)
Allows for quick swap of DIB, works only with the Quick Lock TOP PLATE RIK0214A.
Z-height designed to work with Seiko/Epson compatible handlers.
Extra screws for thicker, non-complying DUT Boards. If DUT Board thickness or insert layout causes bowing of the DUT Board, extra screws are intended to reduce DIB compliance when installed on a QuickLock Top Plate. See DIB Design Guide for thickness specifications.
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MA662W1A | 12 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | ||
| 2 | MH3FNW1A | 4 | SCREW, FLAT PHIL, 4-40 X 5/16", 100° SS, w/patch | Hrdwr | ||
| 3 | MNE8HT6A | 8 | Screw, Flat Phil, 8-32 X 3/8, 100° | Hrdwr | ||
| 4 | MNUP706B | 1 | Assy DOC for RIK: 0213 0240 0214 0215 0216 0217 | Dcmnt | ||
| 5 | W1MFFGSF | 1 | DUT clamp Seiko Epson 8 SCREW | MchFb |
