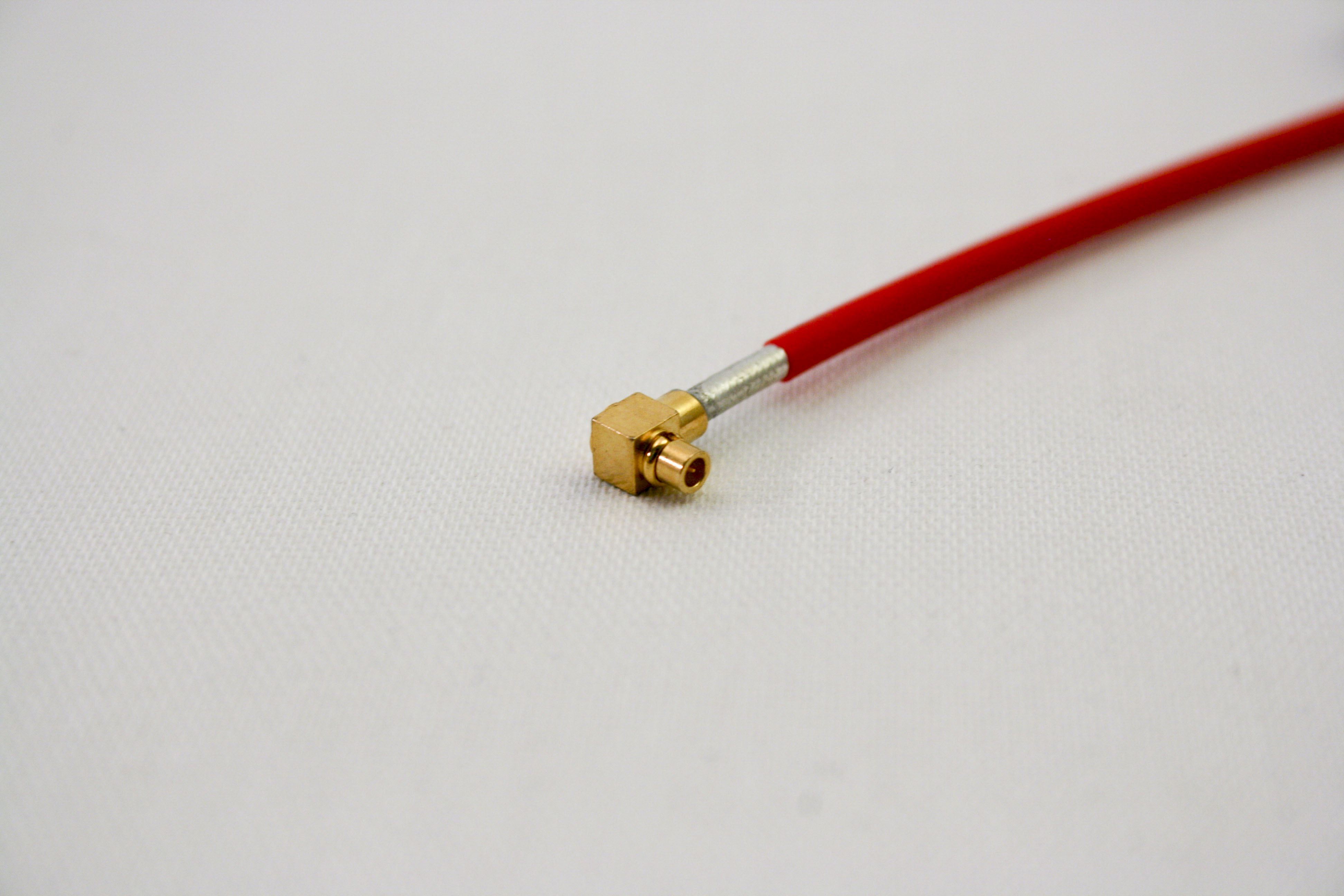

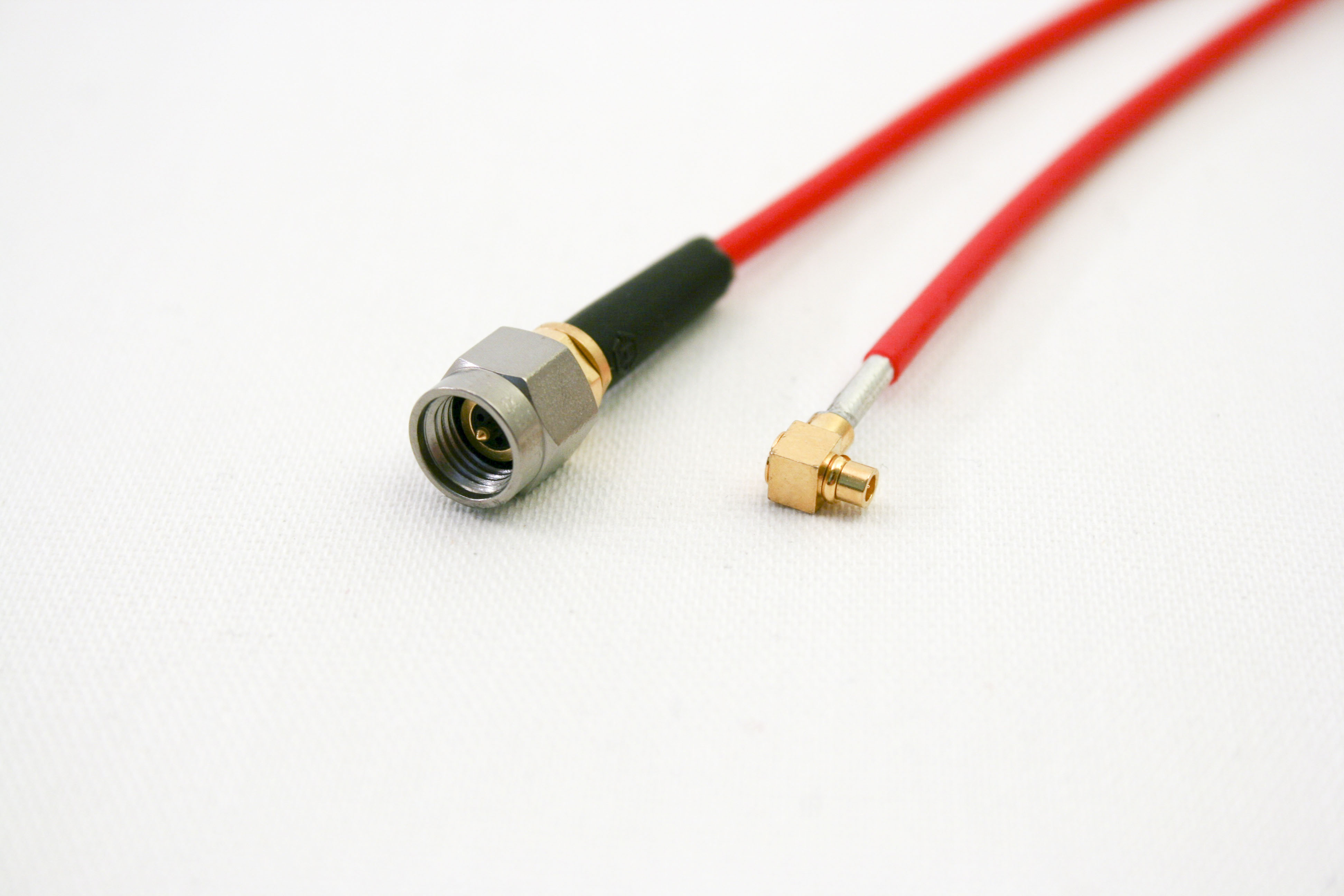

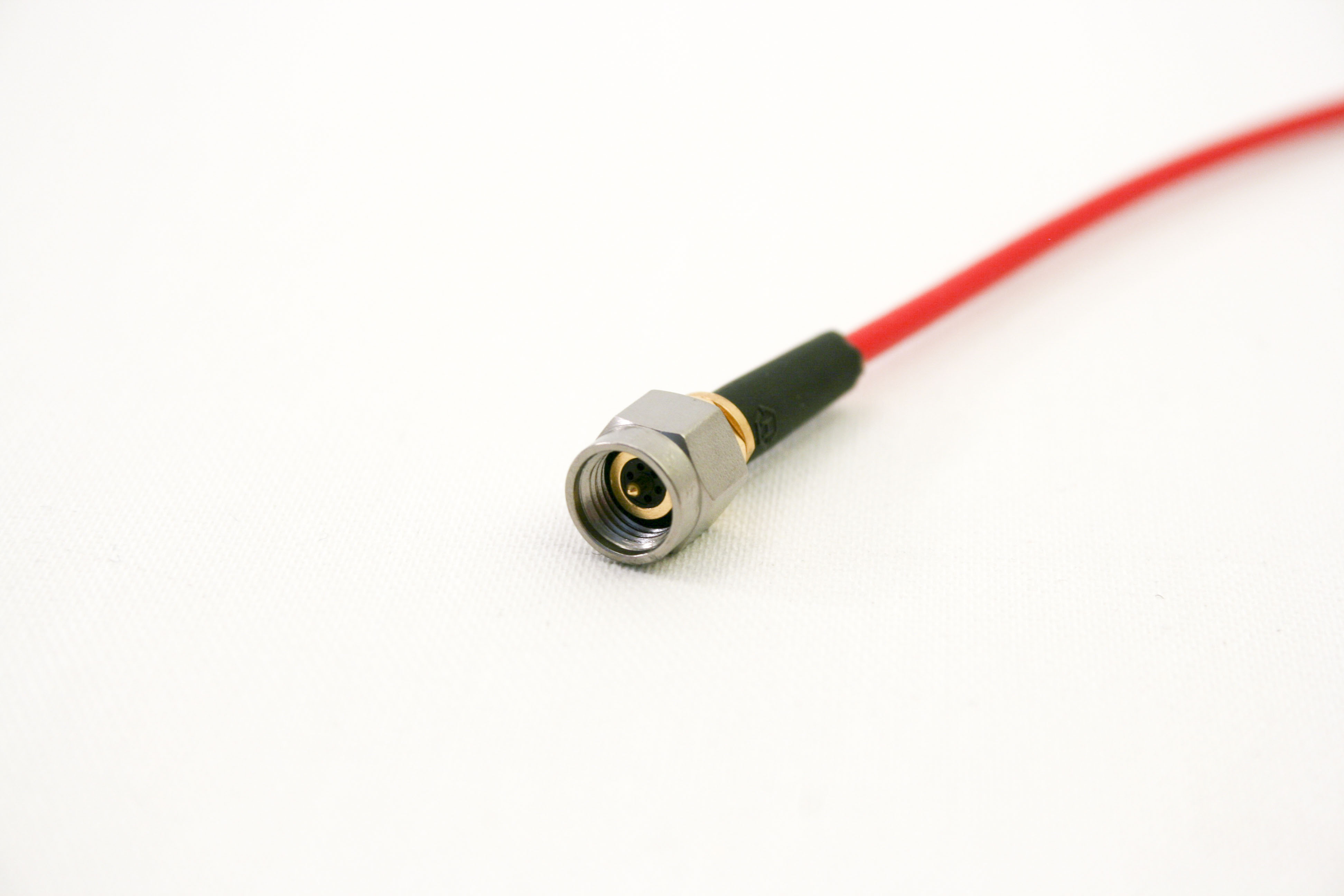

RF Cable, Conform, 2.9K(m)-90° MMPX(m), 16"
Modules or Components to 40GHz DIB interface
Part Number: RIK0230A
Preferred cable for routing 40 GHz signals from a Fixture Module or Component (2.9mm K connector) to the RIK0156A MMPX DIB Launch.
Requires RIK0257A MMXP Extraction tool for disconnecting cable.
| Quantity | Connector Type(s) | Genders | Angle(s) | |
|---|---|---|---|---|
| Side A | 1 | K 2.9 | M | |
| Side B | 1 | MMPX | M | 90° |
Max Frequency: 40 GHz
Cable Length: 40 inches
Cable Structure: Conformable (Limited Bend, Mid Stability)
Fixture Block Type:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | MMXSH21A | 1 | COAX, CONF, 2.9mm(m) mmpx(m), 16" rt angle | Coax |
