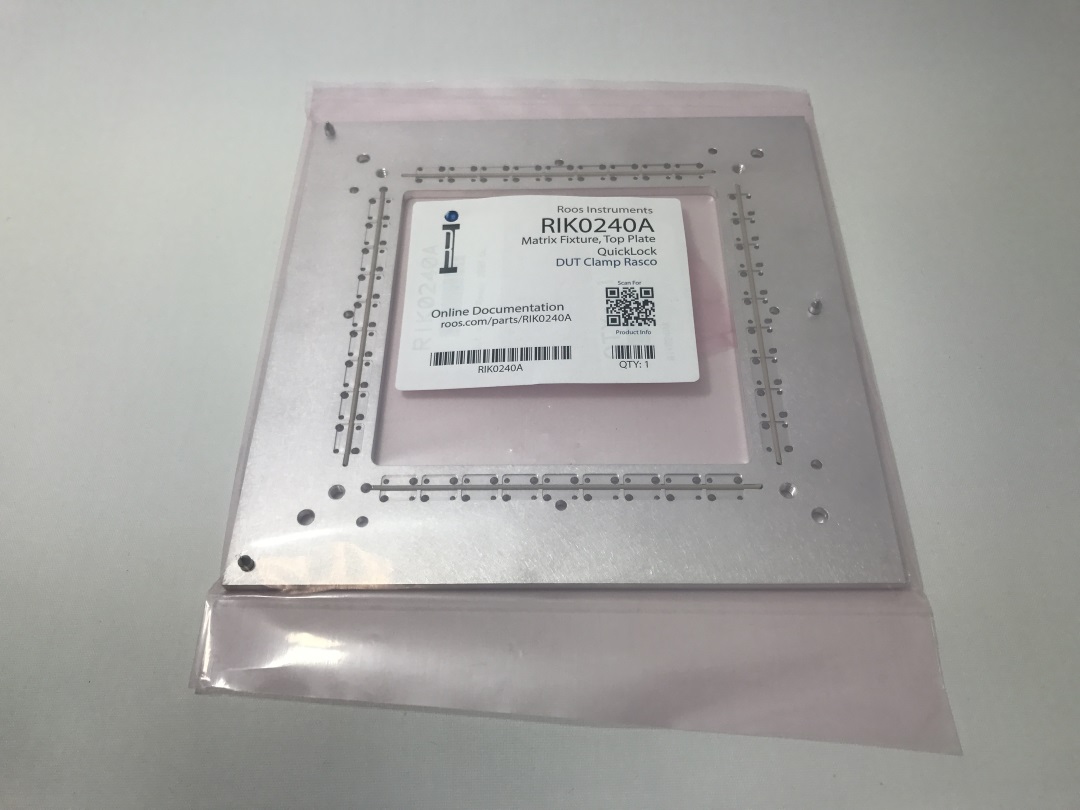

QuickLock, DUT Clamp, Rasco Quad
Part Number: RIK0240A
Estimated Restocking Time: 1-2 weeks
DUT Clamp used on the TOP of the Quicklock Pedestal Support. DIB is installed between this clamp and the Pedestal Support.
Related Documents:
Elastomer Trimming https://roos.com/docs/JCON-9DNSYA
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|
| 1 | ARYL075A | 1 | RIK0240A Label Package.PDF (Sheet of 6) | Dcmnt | ||
| 2 | M8A0AT1A | 4 | SCREW, FLAT PHIL, 4-40 X 5/16", SS, Blk OX, W/Patchlock | Hrdwr | ||
| 3 | MA662W1A | 24 | Conductive Elastomer round .071Dia for Fixtures | MchCmp | ||
| 4 | MNE8HT6A | 4 | Screw, Flat Phil, 8-32 X 3/8, 100° | Hrdwr | ||
| 5 | MNUP706B | 1 | Assy DOC for RIK: 0213 0240 0214 0215 0216 0217 | Dcmnt | ||
| 6 | W1MFFEFA | 1 | Dut clamp rasco 2000 4 screw mount (4.3mm) | MchFb |
