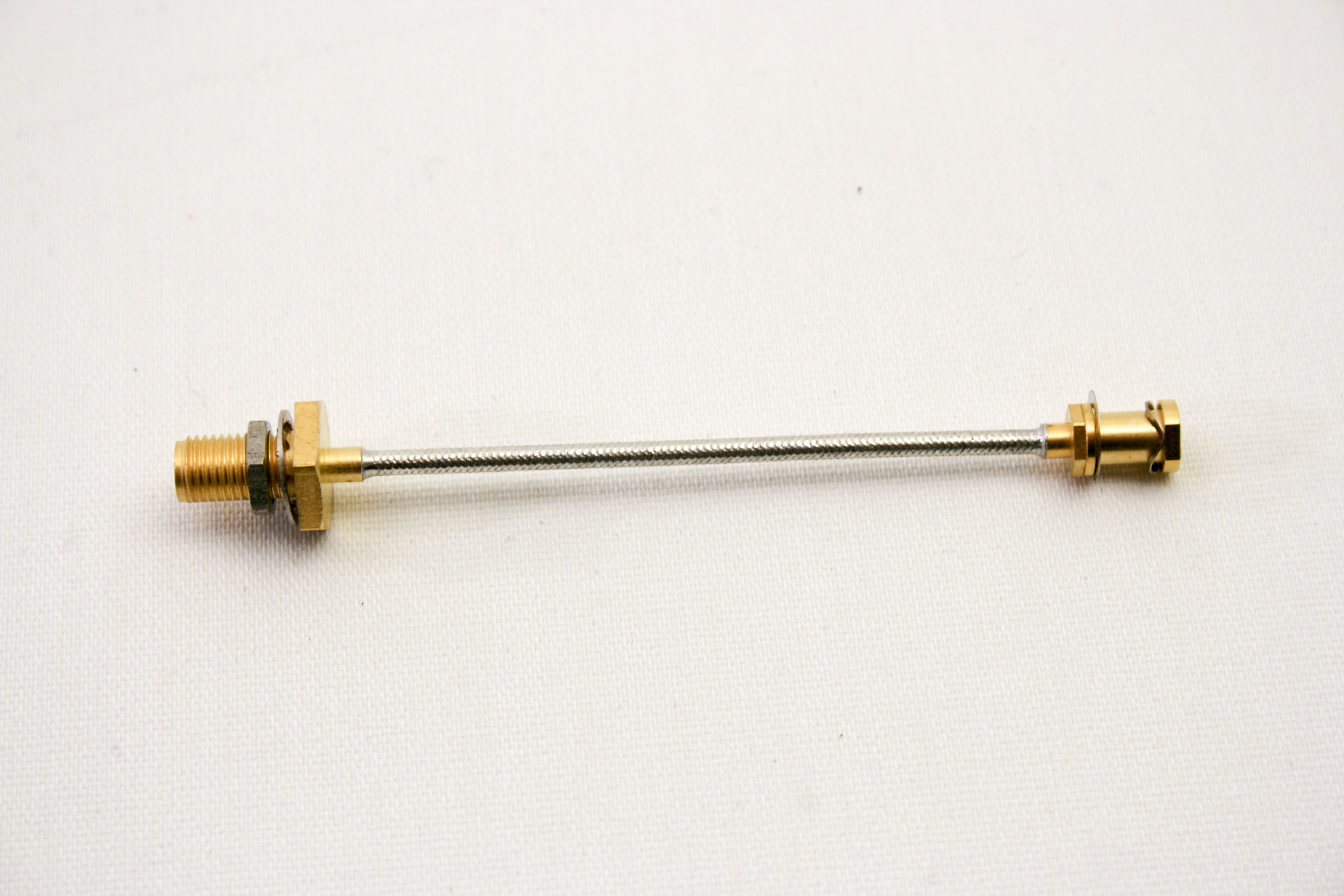

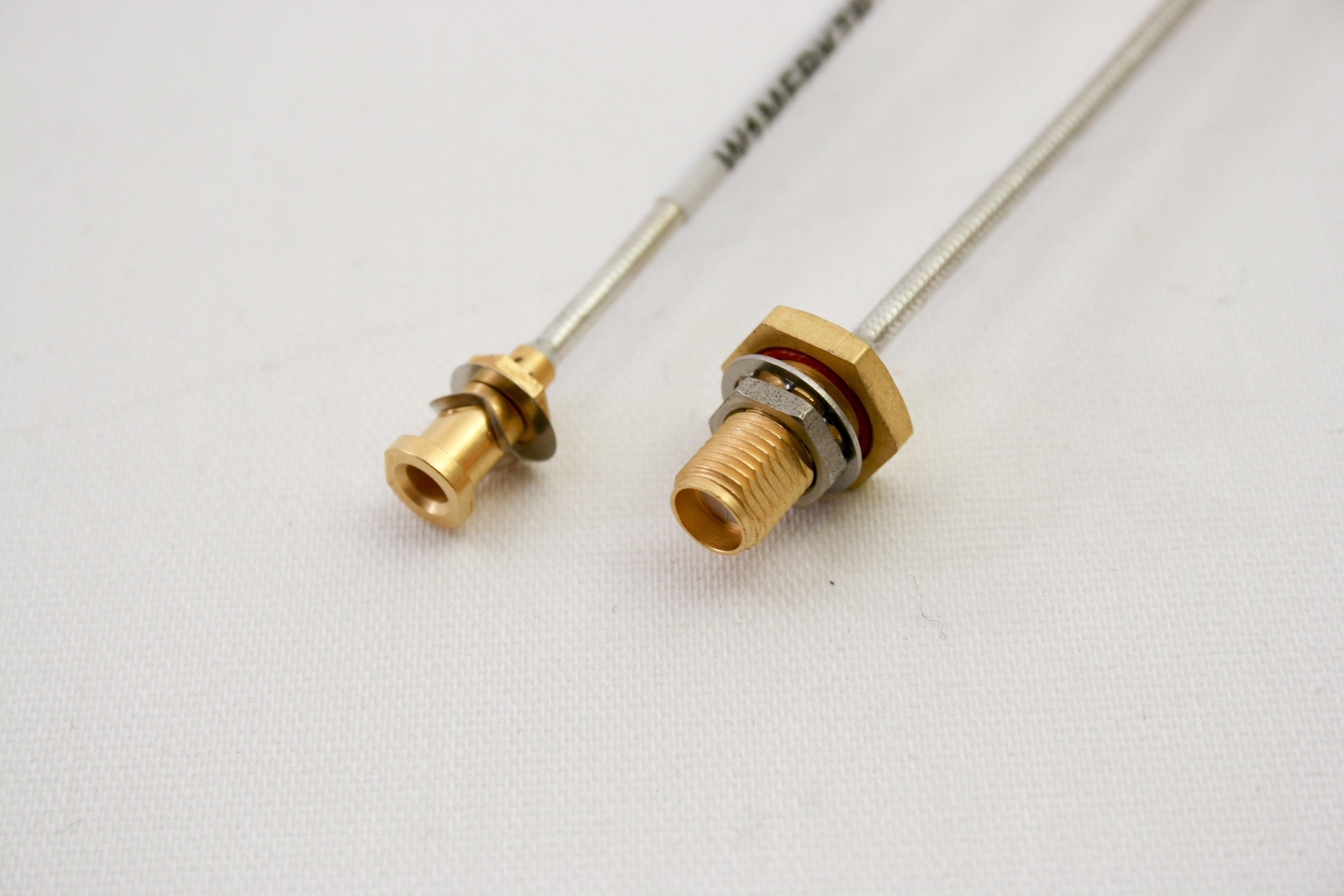

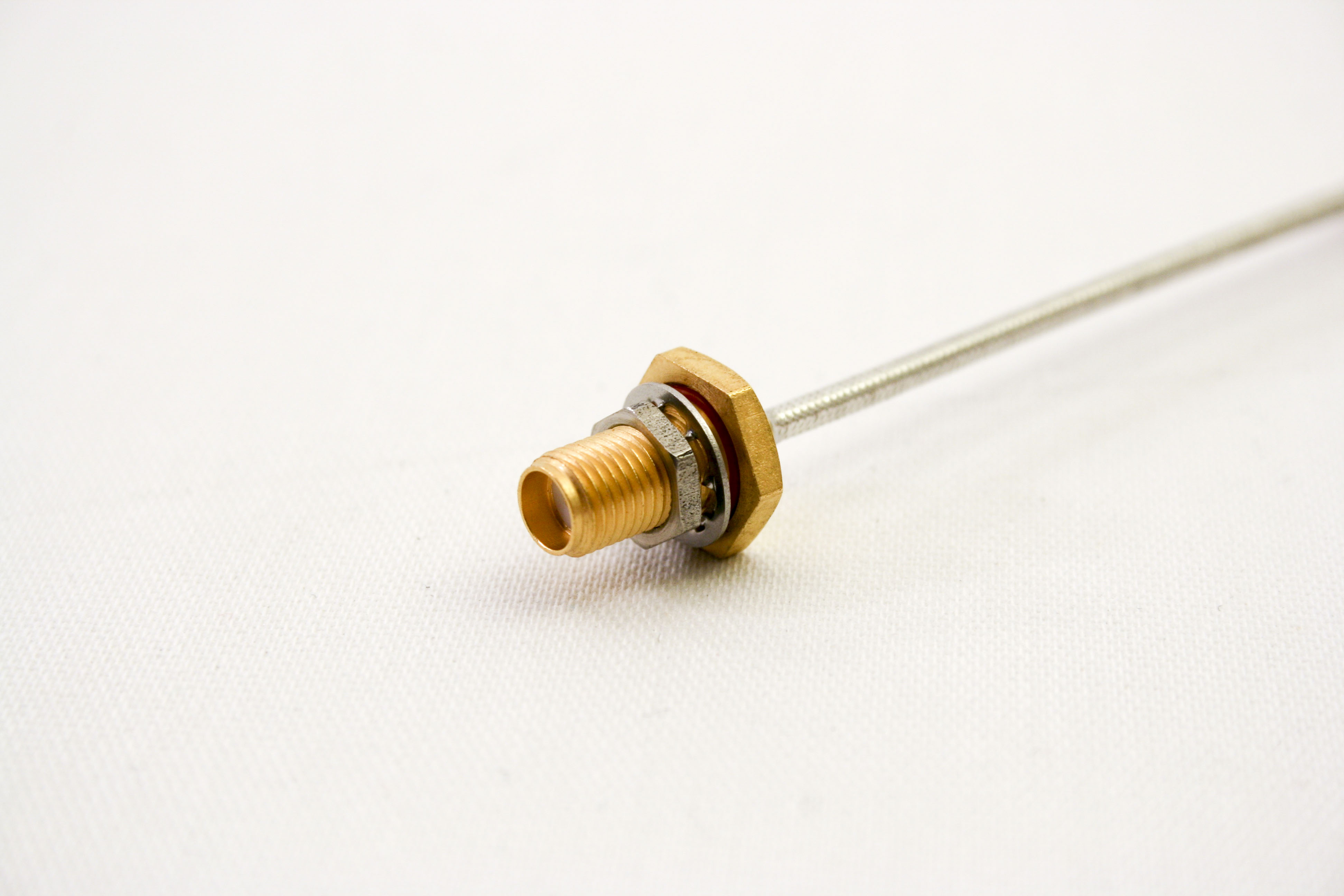

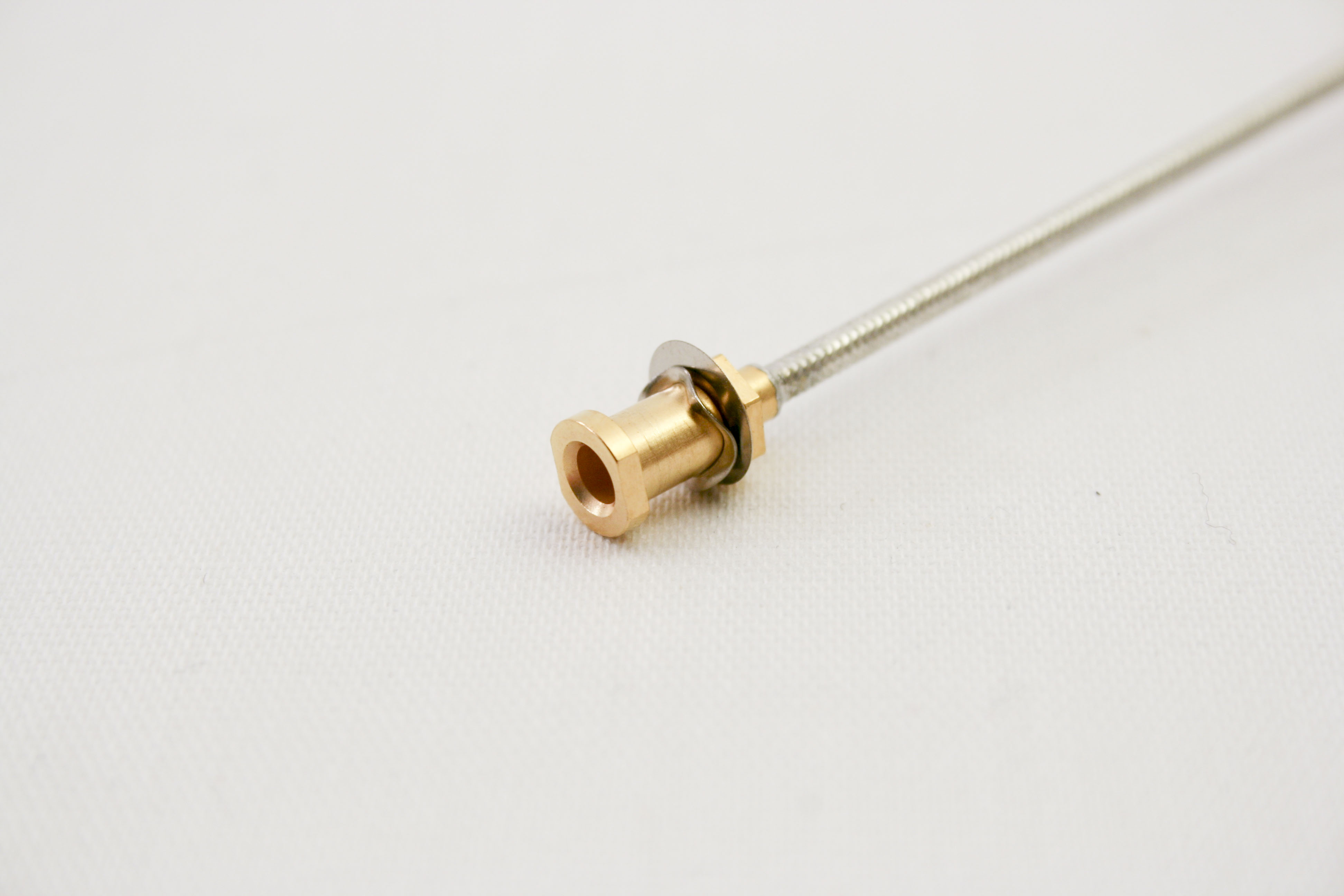

RF Cable, Conform, SSIS(m)-SMA(f), 3.4"
RI7100A Bottom plate to 20 RF Top Plate Launch
Part Number: RIK0248A
Used ONLY for RI7100A fixtures from the bottom to modules or top plate adapters.
| Quantity | Connector Type(s) | Genders | Angle(s) | |
|---|---|---|---|---|
| Side A | 1 | SSIS | M | |
| Side B | 1 | SMA | M |
Max Frequency: 16 GHz
Cable Length: 3.4 inches
Cable Structure: Conformable (Limited Bend, Mid Stability)
Fixture Block Type:
| Item | Ref | Part Number | QTY | Description | Category | Qty in Stock |
|---|---|---|---|---|---|---|

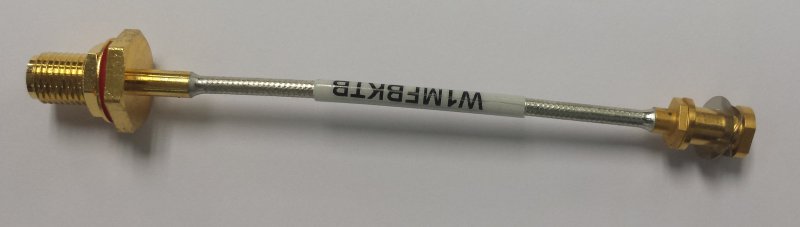

| 1 | W1MFBKTB | 1 | COAX,SEMI-CONFRM,SSISM-SMAF 3.4"* | Coax |
